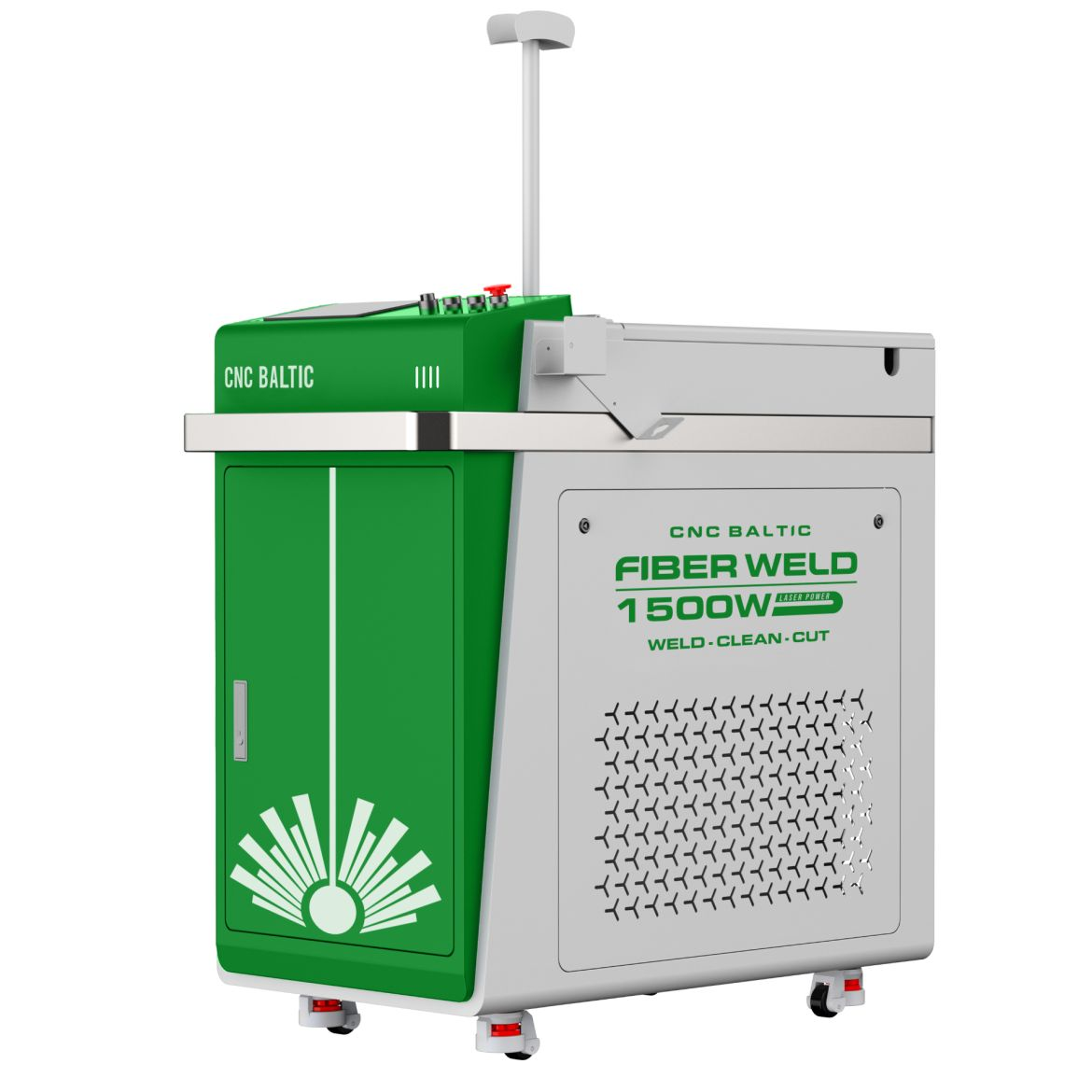

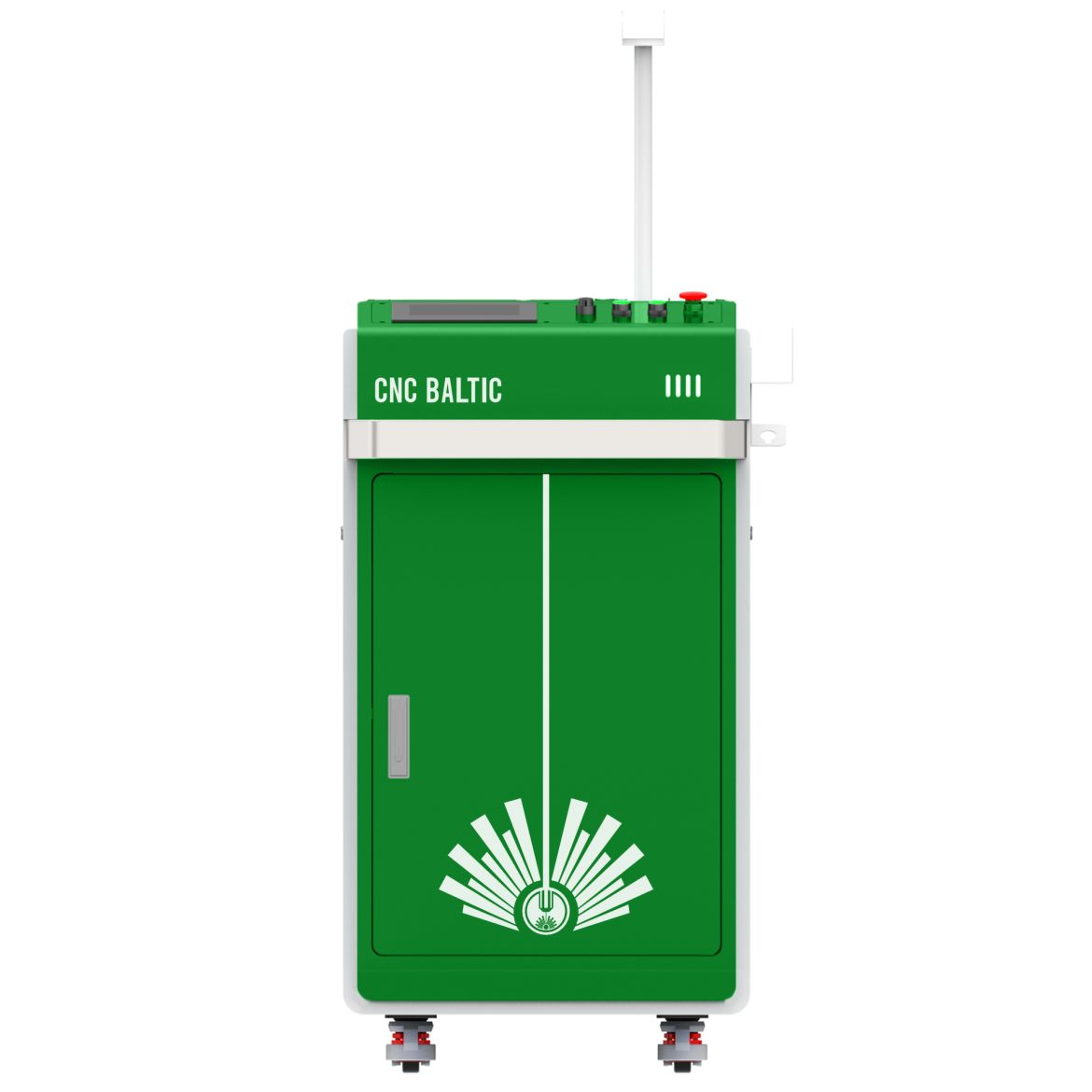

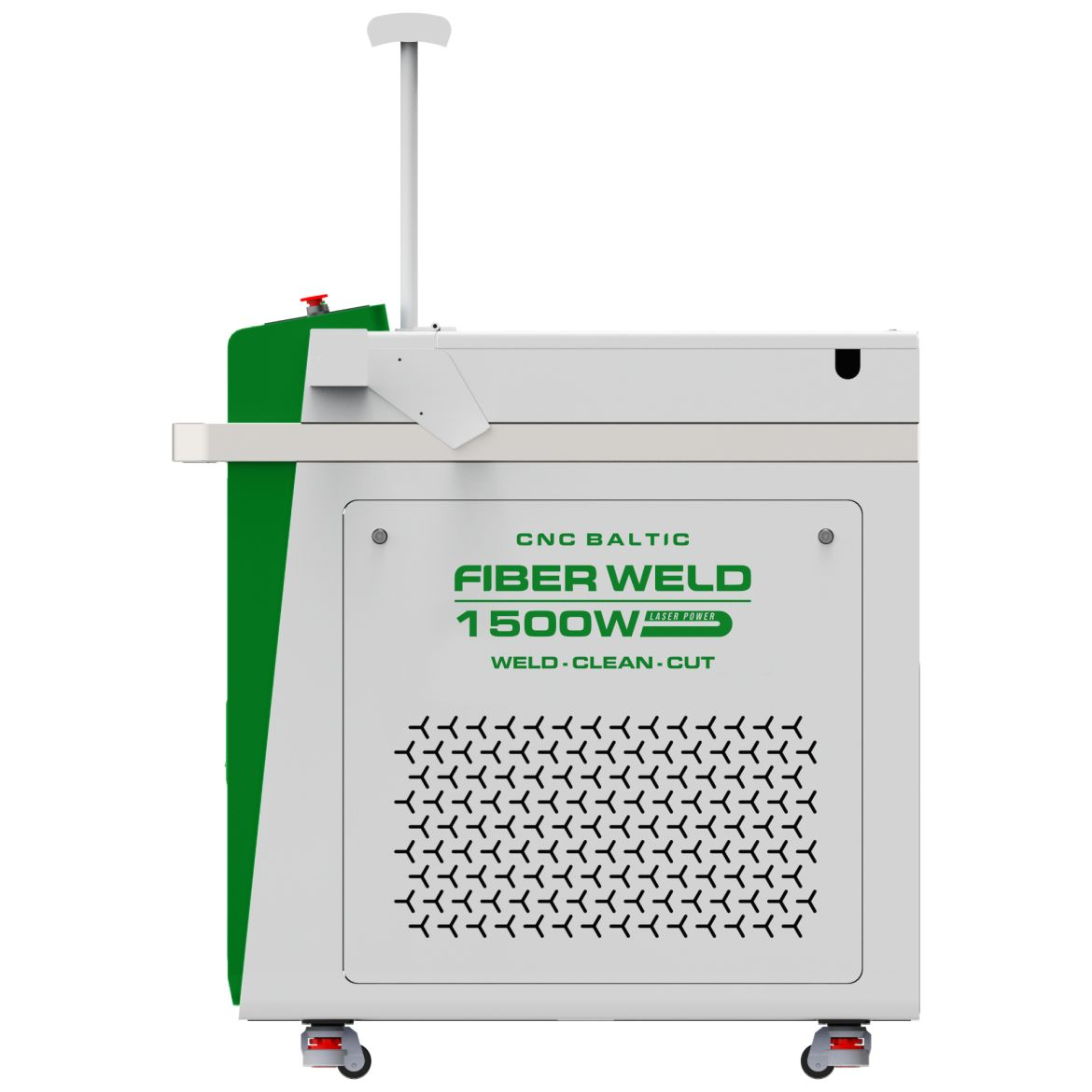

FIBER-WELD 1500W : Laser welding machine
FIBER-WELD 1500W: Continuous laser welding, cleaning and cutting machine. Suitable for welding, cleaning and cutting carbon steel, stainless steel, aluminum and their alloy metal materials. System power 1500W, for welding up to 4-5mm Fe and CrNi, and 3mm Al. Adjustable beam for cleaning from 0 to 70 mm. Laser head with Swing function, movement in one plane is regulated by frequency.
Model: | FIBER-WELD 1500W |
Laser brand: | IPG / MaxPhotonics / Raycus / JPT |
Laser power: | 1000 / 1500W |
Laser power module lifetime: | 100 000 hours |
Laser wave lenght: | 1080±5nm |
Laser frequency: | 50Hz-5KHz |
Fiber cable lenght: | 5 / 10 / 15 m |
Welding wire diameter: | 0.8 / 1.0 / 1.2 / 1.6 mm |
Shield gas specification: | Inert gas - Nitrogen, Argon, Helium ( N2 , Ar , He ) |
Gas specification: | Welding and cleaning - 0.2-0.5 Mpa |
System cooling: | Water cooling ( distilled, dielectric water ) |
Controller: | Au3tech / Qilin / SUP / Relfar |

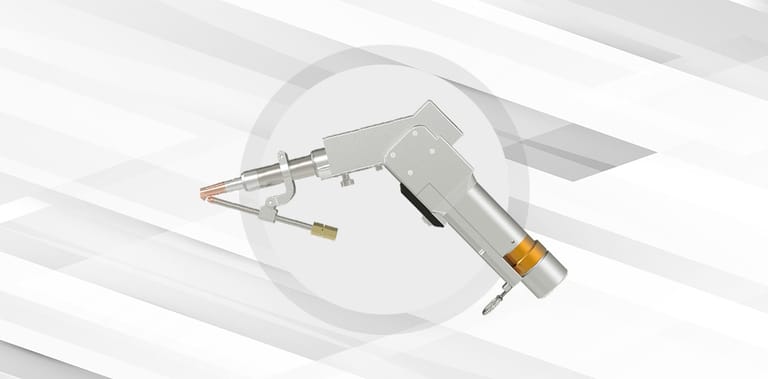

Laser head: | Au3tech / Qilin / SUP / Relfar |
Laser head function: | SWING or PENDULUM ( point movement in one or two planes) |
Laser head weight: | ≤1kg |
Focal length: | 150mm |
Cleaning scanning width: | regulated 0-70 mm |
Aiming and positioning system: | Red point |

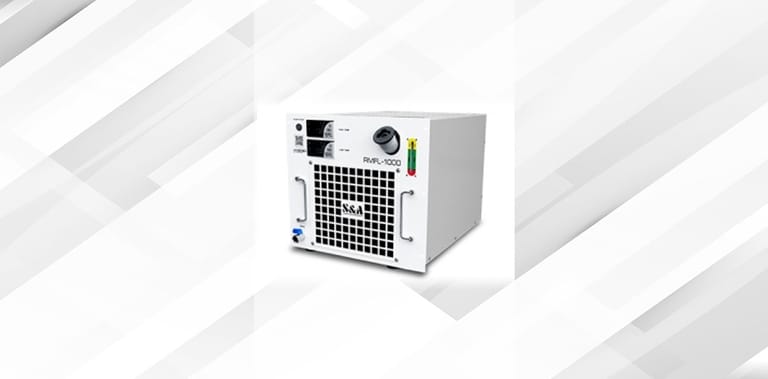

Additional equipment: | Wire feeder for welding function. Water cooler. |
Mains supply: | 220V AC, single phase, 50hz |
Weight: | 190 kg |
Size: | 130*60*113cm |
Warranty: | 2 years |

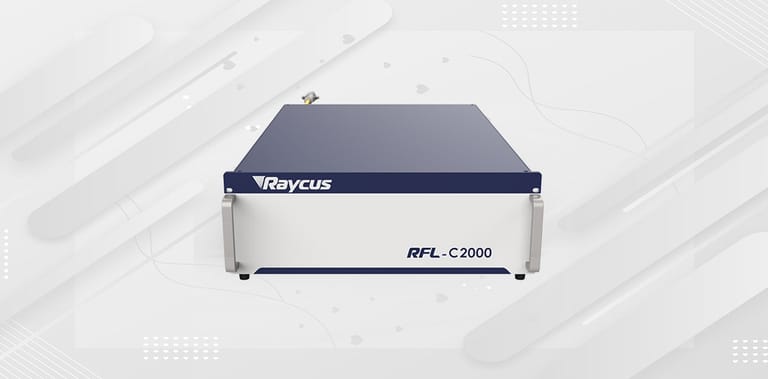

Offered laser source brands: IPG / Raycus / MAX Photonics / JPT
Laser power: 1000/1500/2000W/3000W according to your requirements.
ADVANTAGES OF HAND-HELD LASER WELDING MACHINE:
• Energy density is high, heat input is low, amount of thermal deformation is small,
and the melting zone and heat-affected zone are narrow and deep.
• Compared to contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and significantly increasing work efficiency.
• The width of the welding seam is adjustable, the precision is high, the appearance is smooth, the frequency and pulsation are adjustable.
• Handheld welding head, easy to operate with one hand, comfortable to hold, light and flexible.
• It can be widely used in metal equipment processing, and the welding process is far superior to traditional argon arc welding and electric welding.
• The water cooler is equipped with various alarm protection functions: compressor delay protection; compressor overcurrent protection; water flow alarm; high temperature / low temperature alarm.
